Bandit 2019 90XP BUSH(9″ DISC STYLE) BANDIT CHIPPER MACHINE
Regular Price: $27,814

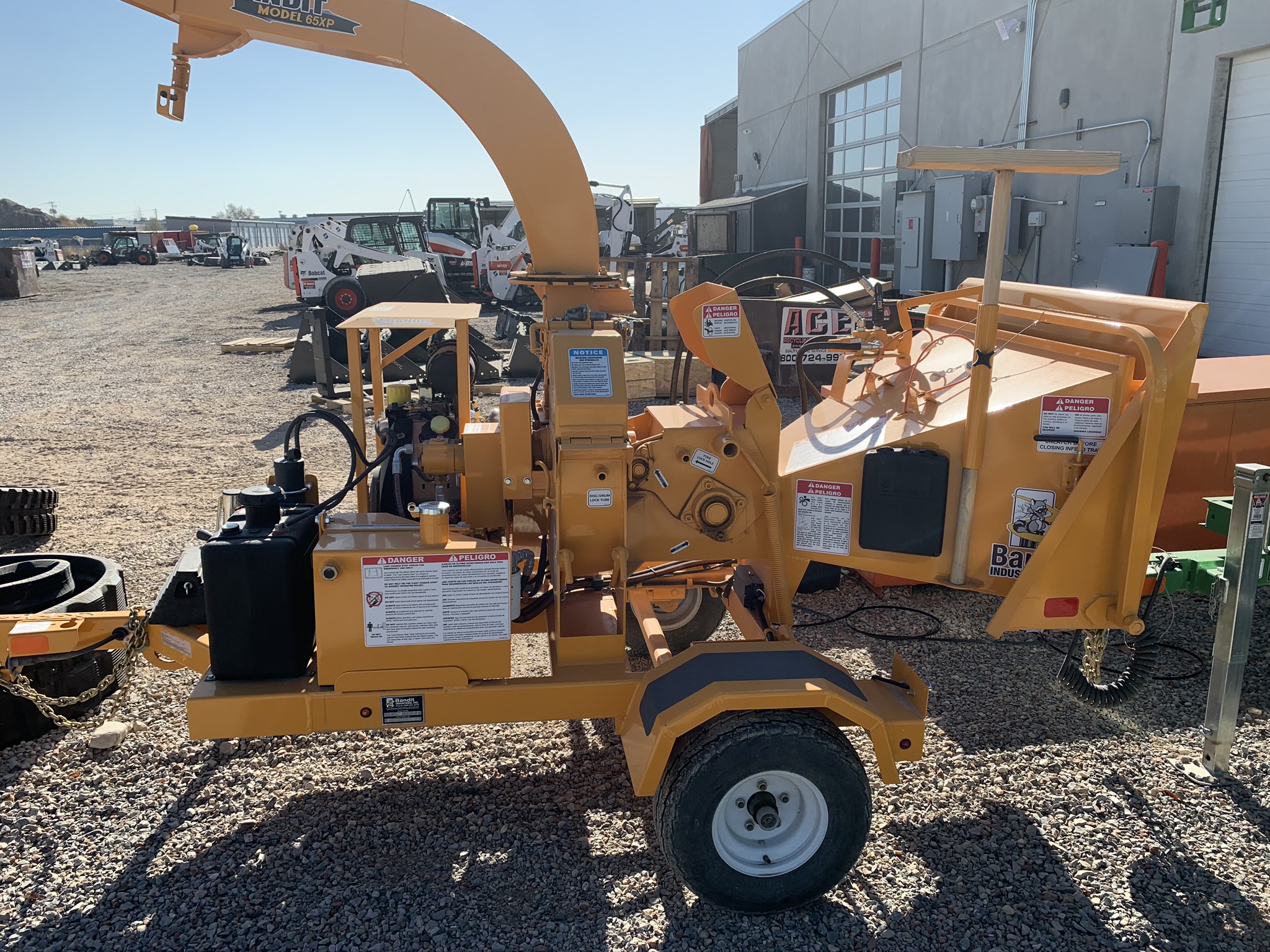

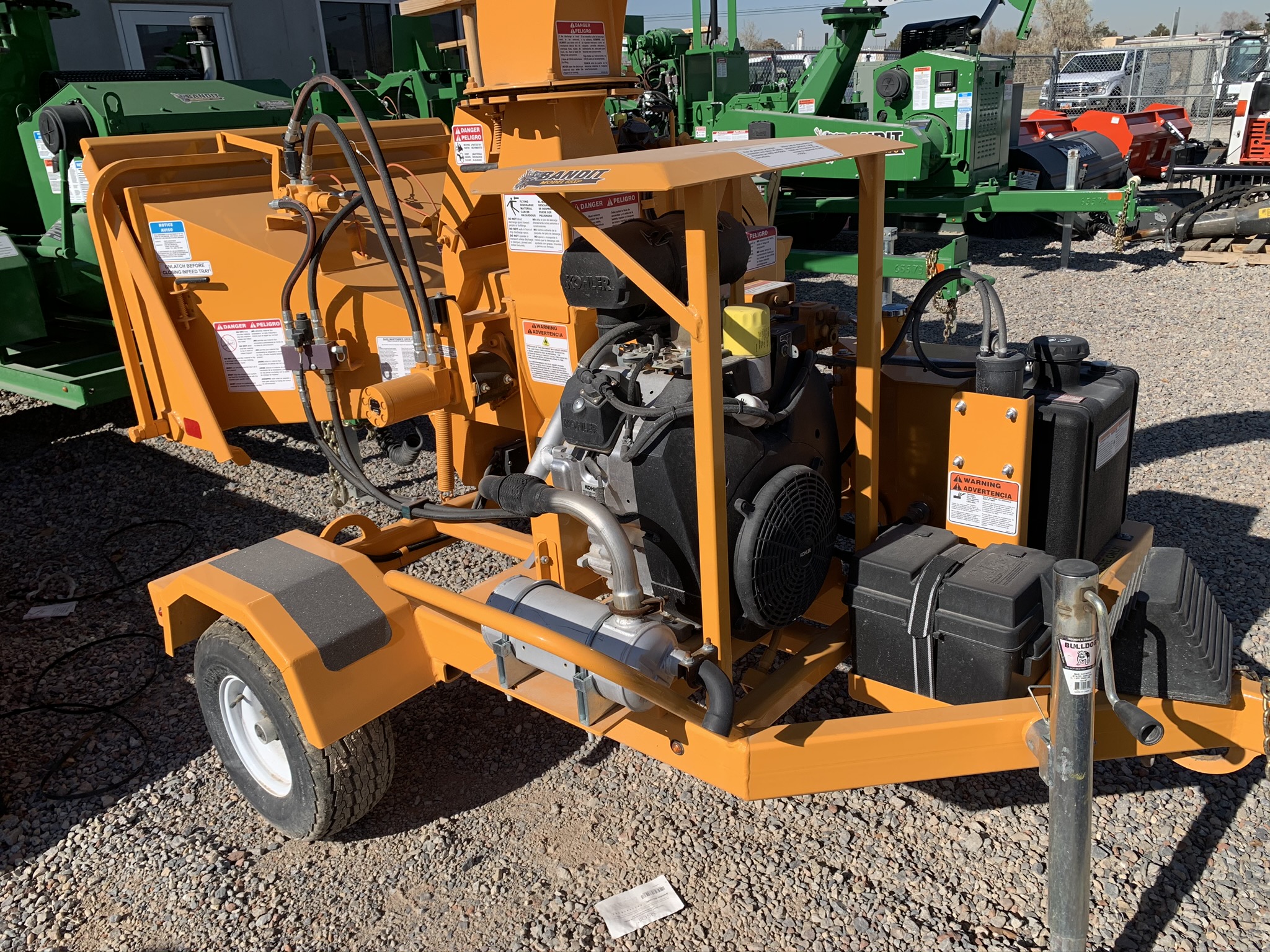

New 2019 Model 90XP (9″ Disc Style) Bush wood Chipper Machine
30″ diameter x 1-1/2″ thick (2 knife pocket) chipper disc, each pocket equipped with (2) 1/2″ x 4″ x 5 1/8″ dual edge knives

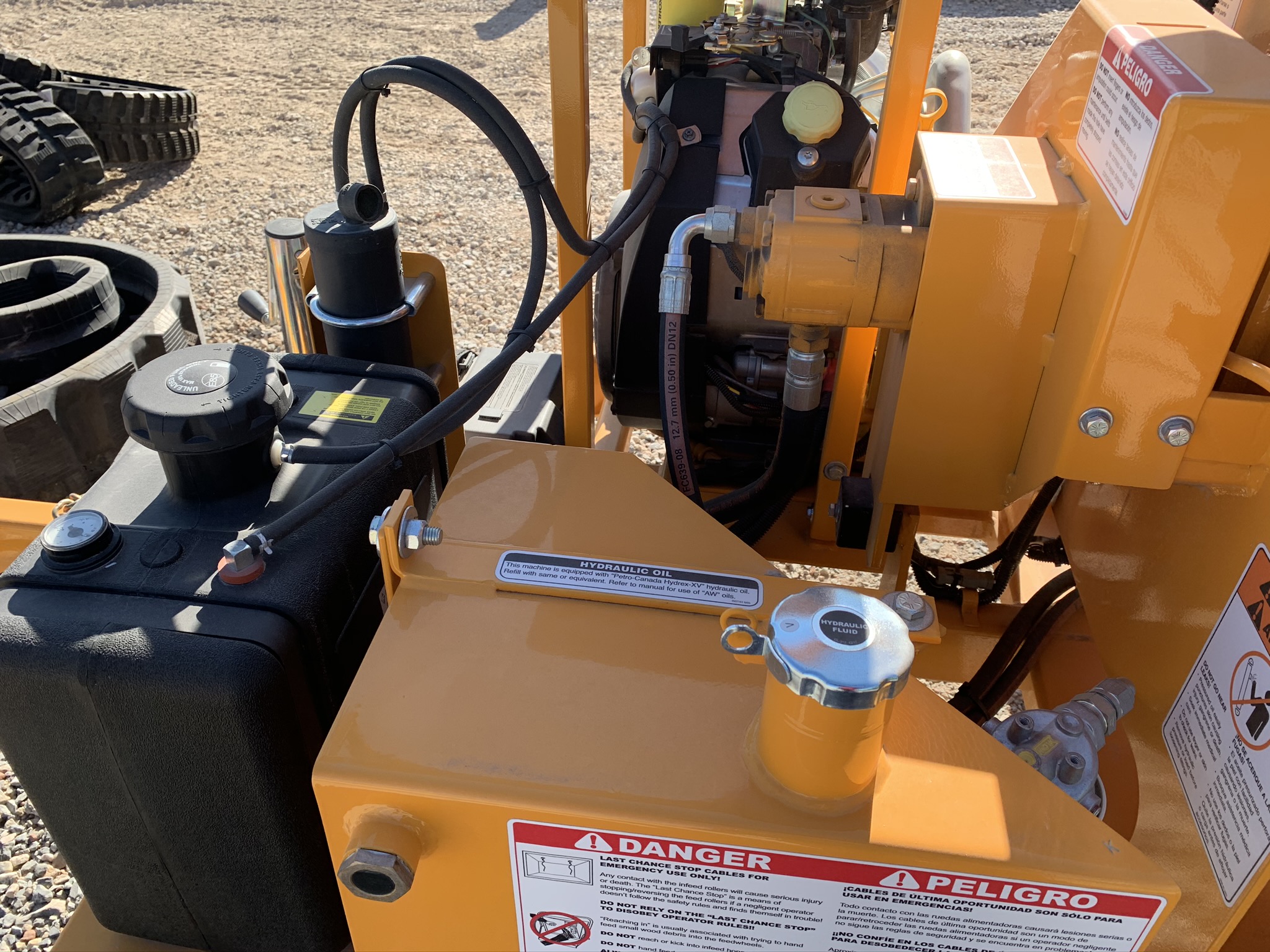

24-1/2 gallon steel fuel tank with magnetic drain plug and aluminium sight gauge 7 gallon steel hydraulic tank with magnetic drain plug and aluminium sight gauge
Slide box feed system (includes adjustable spring on each side) with (2) horizontal feed wheels 7 1/2″ diameter x 16 3/8″ wide, driven by (2) 15.9 CID hydraulic motors.
Top feed wheel jack mount with locking pin to raise & lock top feed wheel using tongue jack (not provided when hydraulic lift cylinder option is selected)
Bottom feed wheel clean out door (opens via spring latch pin allowing dirt and debris to fall out extending knife and component life)
360 degree HAND crank swivel discharge (height adjustable) with 12″ adjustable chip
deflector
Clean out and inspection door on discharge
29″ high x 35″ wide tapered infeed hopper with 30″ fold down infeed hopper tray (Hydrauilc winch is not available with this tray)
(2) Last chance safety pull cables
Control bar – located around top and sides of infeed hopper with 3 control positions (forward / neutral / reverse)
Wooden pusher tool with mount on infeed hopper
3/16″ x 2″ x 4″ rectangular tubing with a 1/ 4″ x 3″ x 4″ tubular tongue 5/16″ (G70) safety chains with spring loaded latch hooks
5,000 pound capacity tonguejack with 15″ of travel and foot pad
30″ diameter x 1-1/2″ thick (2 knife pocket) chipper disc, each pocket equipped with (2) 1/2″ x 4″ x 5 1/8″ dual edge knives
24-1/2 gallon steel fuel tank with magnetic drain plug and aluminium sight gauge 7 gallon steel hydraulic tank with magnetic drain plug and aluminium sight gauge
Slide box feed system (includes adjustable spring on each side) with (2) horizontal feed wheels 7 1/2″ diameter x 16 3/8″ wide, driven by (2) 15.9 CID hydraulic motors.
Top feed wheel jack mount with locking pin to raise & lock top feed wheel using tongue jack (not provided when hydraulic lift cylinder option is selected)
Bottom feed wheel clean out door (opens via spring latch pin allowing dirt and debris to fall out extending knife and component life)
360 degree HAND crank swivel discharge (height adjustable) with 12″ adjustable chip
deflector
Clean out and inspection door on discharge
29″ high x 35″ wide tapered infeed hopper with 30″ fold down infeed hopper tray (Hydrauilc winch is not available with this tray)
(2) Last chance safety pull cables
Control bar – located around top and sides of infeed hopper with 3 control positions (forward / neutral / reverse)
Wooden pusher tool with mount on infeed hopper
3/16″ x 2″ x 4″ rectangular tubing with a 1/ 4″ x 3″ x 4″ tubular tongue 5/16″ (G70) safety chains with spring loaded latch hooks
5,000 pound capacity tonguejack with 15″ of travel and foot pad
Standard Imron I ndustrial Urethane Bandit Yellow

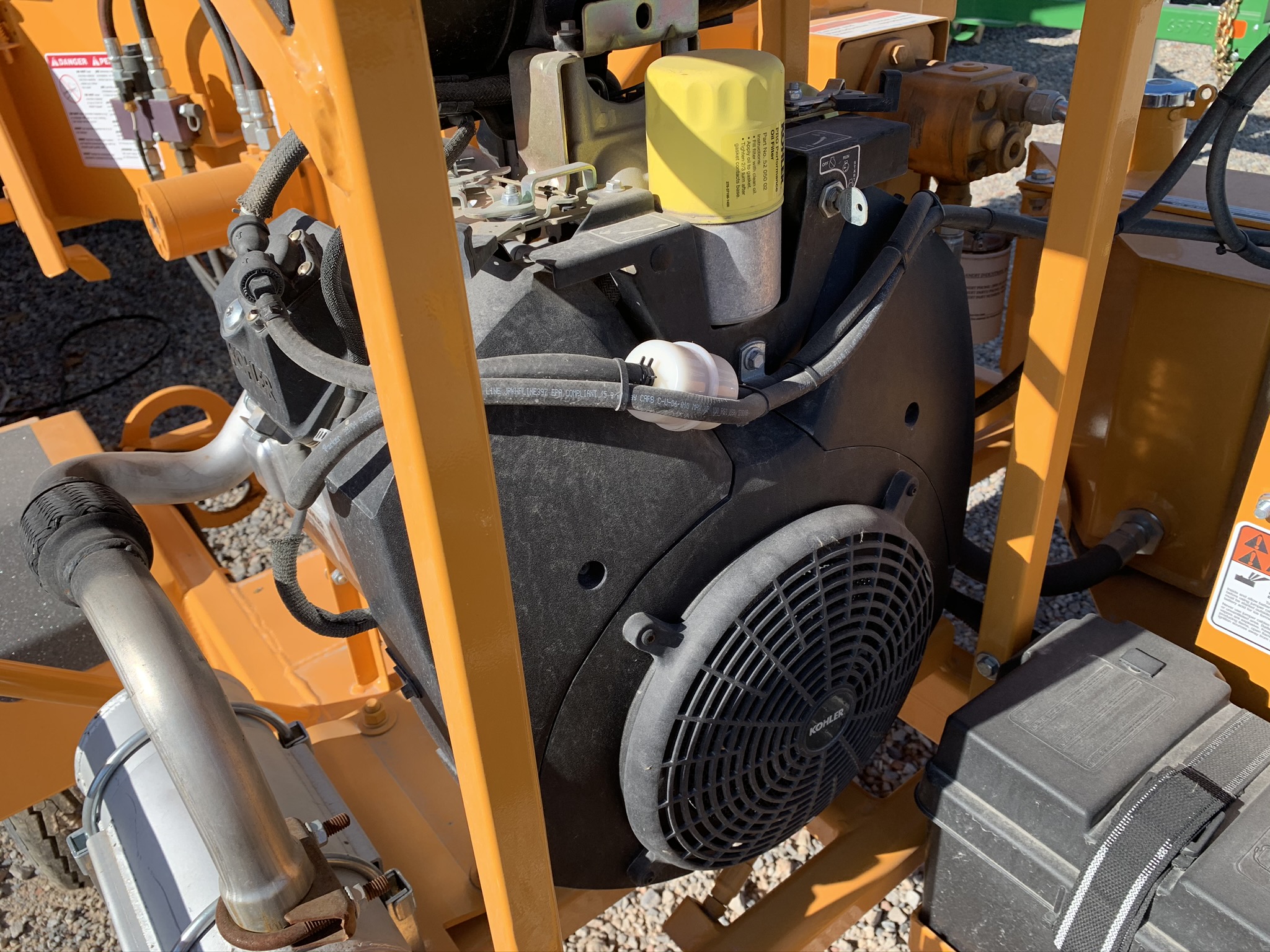

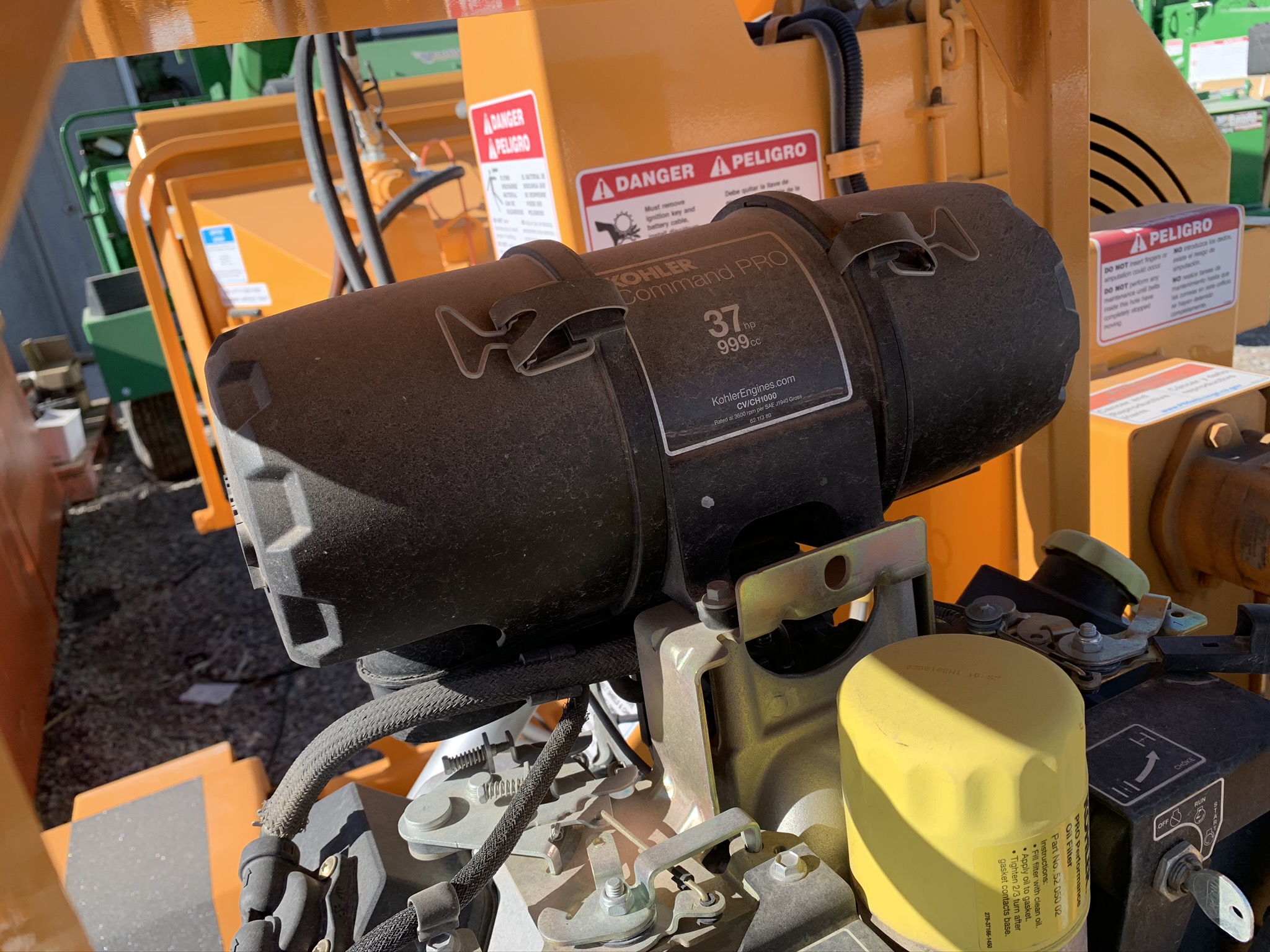

1 9 90- RC1194 -7 75 Kohler CHlO00, 37 horsepowergas engine
1 907-600 0-05 Reversing auto feed with IEC tach for Kohl er 37
horsepower gas engines (I ncludes 1,000 CC.A battery with box)
1 9 90- 1017 -72 No clutch – direct drive
1 OPTION- 98 6-5000-34 29″ high x 45″ wide tapered infeed hopper with 30″ fold
1 9 90-1018 – 31 Single 6,000 pound Torflex EZ Lube axle with electric brakes
1 9 90 -1014-87 (2) 225/ 75R 15″ tires mounted on 6-bolt white modular rims
1 OPTION-986-5000-35 12″ HD weld on steel fenders
1 990-100274 2-1/2″ Wallace Forge Pintle Hitch
1 OPTION-986-5000-12 DELETE standard hand crank height and swivel discharge
(to be manual swivel and non-height adjustable)
1 OPTION-905-5000-32 Non skid coating on tongue and all step on areas
1 986-0501- 22 Tool kit to change knives for 1/2″ bolt
1 OPTION-905-5000-15 Option 7 Prong (Flat/RV Style) to 6 Prong Coiled Cord
Reduce Your Labor Costs with your 2019 Intimidator Model 12XPC!
The powerful dual-wheel feed system consists of two spring tensioned
17” wide x 7-½” diameter feed wheels, mounted in Bandit’s proven
slide box system. With 1,687 pounds of pulling force from each feed
wheel, the 12XPC effectively pulls trees and large limbs into the
chipper. Material is folded and crushed with little-to-no extra trimming,
repositioning or cutting larger pieces into shorter lengths. The sloping
infeed tray makes it quicker and easier to load and slide brush, logs
and trees into the feed system.
